WEEK 2

Date: 11/2/14

Introduction

Project research is one of part that should to do in develop a project. It became an important thing to get a good project. In this FYP 2, the research that will be made will be separated by two parts i.e. for hardware part and software part. For the hardware part, the research that will be made is about the components that used in the project, the functions of each component, wiring diagram and the test procedures that should be made for each component together with the expected results from the test procedure while for the software part, the research that will be made is specific on the program codes in term of how to program, how to test each part of program code and the method to burn the program codes in the integrated circuit (IC). This project research will be made until the expected result for this project meets.

Objective

• To investigate and learn parts of hardware and software related with the project.
• To list and show both of part (hardware and software) that used in the project.
• To explain all the information that obtained from the research.
• To ensure the project prototype meets.

Problem Encountered

Both of parts (hardware and software) have a problem. For the hardware part, the problem is about to find the energy meter and current sensor. It is because to get both of this component, it need to ordered and will take about 1 week above for a shipment process. For the software part, the problem is in term of to programs according to the expected results in this project and it is become a major problem in this project. Thus, several initiative will be taken for the purposes to solve this problems i.e. find other shop that may give shortest time for the shipment process and do more research on the programming part.

Project Description

First of all, each components that needed in this project is examined in terms of their specifications for the purposes to validate the project prototype meets before making any purchasing. After that, the components that has been examined and verified suitable to used is recorded in a shortlist together with the image and specification of the component. Below is the results that has obtained from this activity:-

Hardware parts

Figure 1: List of Hardware

The specifications for each part of hardware

1. Arduino Mega 2560
2. Current Sensor
3. Single Phase Energy Meter
4. BTBee Explorer Regulated
5. IO Expansion Shield
6. Plug Top
7. Light Bulb
8. RF Module
9. 1 - Way Switch
10. Bluetooth Module

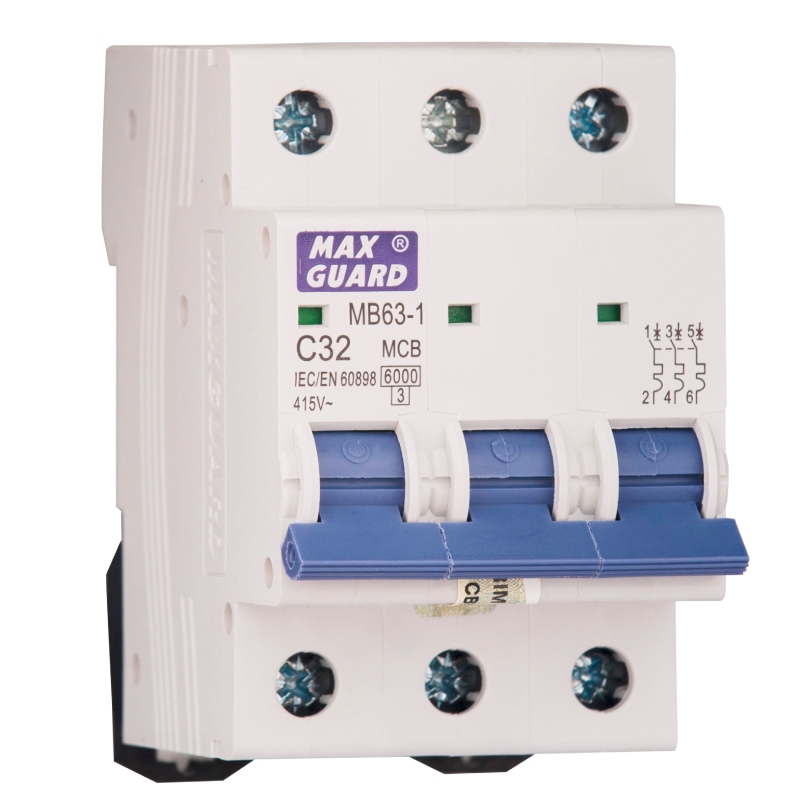

11. MCB 32A 1Pole 6kA
12. 16X2 Character LCD Module
13. Bulb Holder
14. 4 - Ways Plastic Distribution Box
15. PVC Junction Box

Software parts

Figure 2: List of Software

The Arduino IDE environment

1. Language Reference
2. Examples

Other parts

Figure 3: List of other parts

The specifications for other parts

1. USB 2.0 AM/BM
2. 1 Pin Dupont Connector Housing
3. 3 Pin Dupont Connector Housing
4. Male Crimp Pin
5. Female Crimp Pin
6. Wire
7. Soldering Tool Kit
8. Hand Tools
9. Plywood - 36"H x 18"W x 0.35"D
10. Aerosol Paint - Black
11. 7mm Cable Clips

Project Outcome

All the components that needed in this project has been investigated and recorded. The results that obtained from this activity will be used for the purpose of purchasing and booking. On the other hand, some of the component also has been changed with the other component and the changes that has been made is such as below:-

1. Arduino Uno Rev3 ---- Arduino Mega 2560
2. GSM Module ---- Bluetooth Module

3. Current Transformer ---- Octopus Non-invasive AC current sensor (TA12-100) Brick

This components is changed because (1) Arduino Mega 2560 have more I/O port compared with the Arduino Uno Rev3 (compare board specs), (2) in term of price, Bluetooth module is cheaper than GSM module and, (3) in term of current measurement, Octopus Non-invasive AC current sensor (TA12-100) Brick is more compatible and accurate compared with the current transformer. Thus, this is the best solution to ensure project prototype meets. The others information in term of wiring diagram, test procedures (hardware and software) and all thing about the program codes will be discussed after the tasks for redesign a block diagram and flowchart is completed made on the next week.
